Basic Info

Model No.: BODA-018

Impeller Number: Single-Stage Pump

Working Pressure: High Pressure Pump

Influent Type of Impeller: Single Suction Pump

Position of Pump Shaft: Horizontal Pump

Pump Casing Combined: Horizontal Split Pumps

Mounting Height: Since Irrigation Centrifugal Pumps

Impeller: Open

Usage: Pumps

Product Name: DT Series Desulphurization Pump

Additional Info

Packaging: wooden box

Productivity: 500

Brand: BODA

Transportation: Ocean,Land,Air

Place of Origin: china

Supply Ability: 500

Certificate: ISO9901

HS Code: 4101201190

Port: Tianjin,Qingdao,Shanghai

Product Description

we  are  Shijiazhuang Boda Industrial Pump Co.,Ltd  from  china .

we mainly operates pump & pump driven equipments, pump parts & resistance wearing castings, others hydraulic machinery, accessories etc. The products contain slurry pumps, API 610 petrol-oil & chemical pumps, waters pumps which have tens of series , more than one hundred varieties , thousands of models. They are widely used in mining, metallurgy, coal mining, electric power, petroleum, chemical , water supply and drainage industry and so on. Our company have senior engineers and classic technicians, have one slurry pump factory in shijiazhuang city , one API610 pump factory in Shenyang city, one chemical pumps factory in Dalian city .

if you have any needing on pump ,or have any needing on pump Components ,please feel free contact with us . we like to offer your our best price and best service for you .

Looking forward to cooperate with you .

Product Description

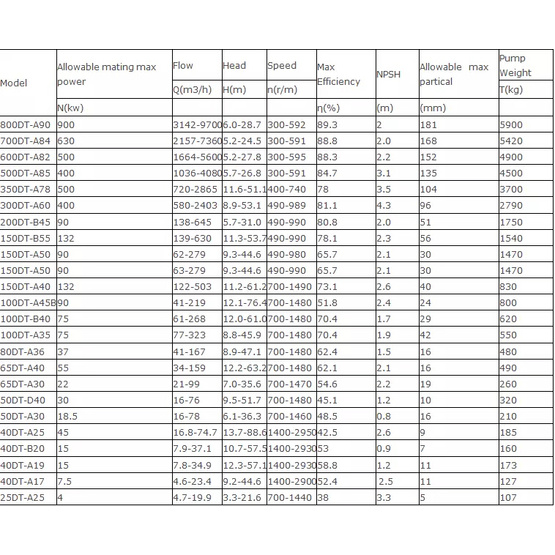

Specifications DT series desulphurization pump

a.OEM welcome

b.high efficiecny

c.energy saving

d.ISO9001,CE

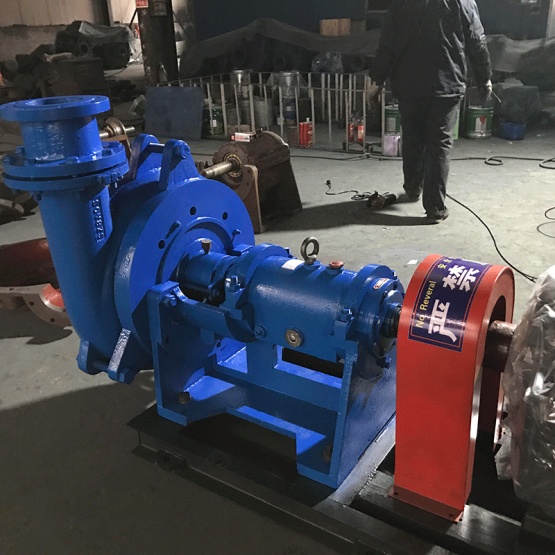

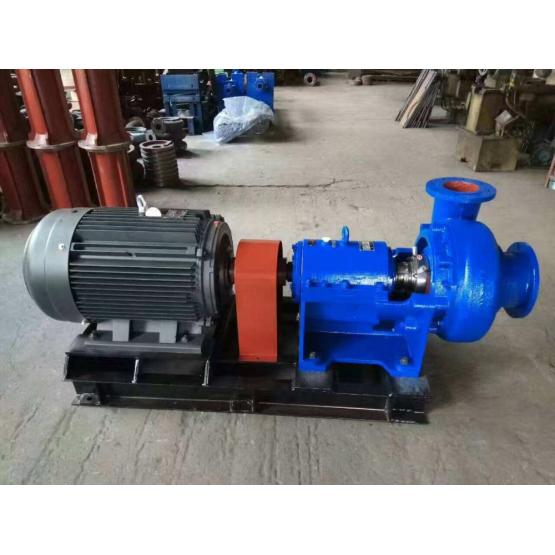

DT series Desulphurization Pump

1,Production Overview:

The pump restricting parts adopt the advanced flow simulation technology to guarantee the reliable pump design and the high operating efficiency.

The anti-corrosion & anti-wear metal and rubber materials which are specifically developed for FGD pumps have been proved by the practice that they can ensure the long-life pump operation. Through adjusting the bearing components to change the impeller position in the pump chamber all-time high-efficient operation of the pump can be achieved. The pump is characterized by the back knock-down structure which is simple and advanced.

It is easy to maintain and repair and it is on need dismantling inlet and outlet water pipes. The containerized mechanical seal specially used for the desulphurization process is adopted and its operation is reliable

2,Main Features:

a) The wet parts adopt the advanced flow simulation analysis in the design process to guarantee the reliable performance, high efficiency of the pumps. The customer can make the pump always running in an efficient operation state by adjusting the bearing components in the pump impeller to suit the cavity position of the pump.

b) The pumps are designed with rear-assemblage structure system. They are featured by easy structure and it is easy to repair without dismantling the inlet and outlet pipe of the pump. End bearing adopts imported tapered roller bearings and driving end uses two cylindrical roller bearings with thin oil lubrication. It can promote the bearings?? working condition to prolong the service life of bearings.

c) Mechanical seal is designed according to the structure characteristic of desulphurization pump, slurry characteristic and the application characteristic. It is cartridge mechanical seal. It has good performance, long service life.

d) The FGD (Flue Gas Desulfurization) equipment of the pump is made of a new type of material A49 duplex stainless white iron which is specially developed by our company itself. The new material has significant corrosion-resistant and wear-resisting performance. The pump, pump cover and splice plates are pressure parts and made of ductile cast iron. The impeller and suction cover is made of the A49 dual-phase stainless white iron. The material of cover plate liner, frame plate liner, and rear liner is natural rubber with natural good abrasion performance, light weight, relatively low cost.

3,Main Usages:

It is mainly applied in the power plant for the absorption tower circulation pump to transmit corrosive slurry.

Power plant, steel plant for flue gas desulphurization.
