Basic Info

Model No.: BODA-178

Product Name: S Series Double Suction Pump

Additional Info

Packaging: wooden box

Productivity: 500

Brand: BODA

Transportation: Ocean,Land,Air

Place of Origin: china

Supply Ability: 500

Certificate: ISO9901

HS Code: 4101201190

Port: Tianjin,Qingdao,Shanghai

Product Description

Flow rate (Q) 3.2-2000m3/h

Head (H) 7-160m

Working pressure (P) 2.5MPa

Working temperature (t) -80-300 degrees

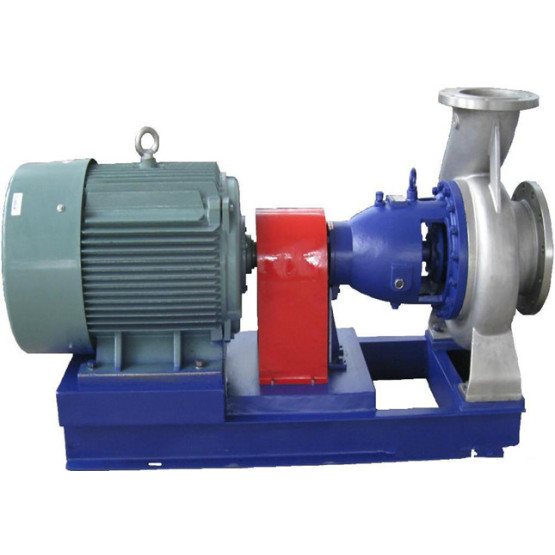

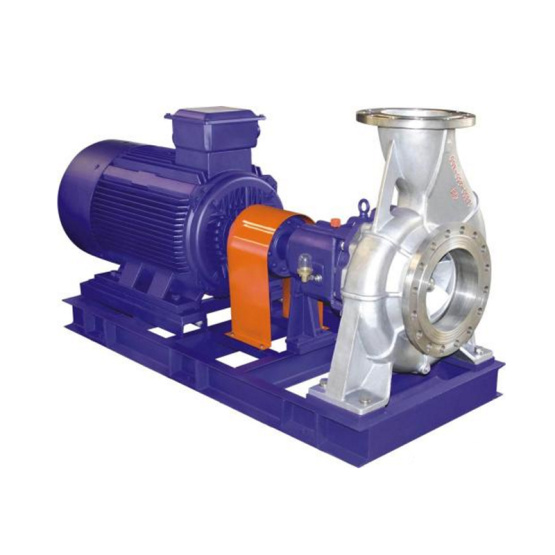

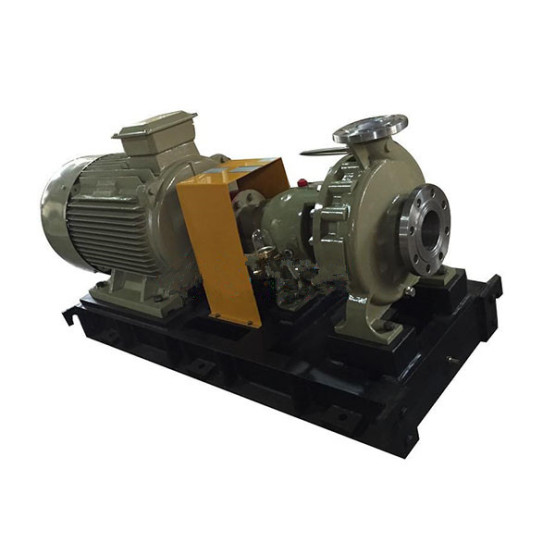

CZ series standard chemical pump overview

The CZ series of standard chemical pumps are horizontal, single-stage, single-suction centrifugal pumps; their size and performance are in accordance with DIN24256/ISO2858. The performance range of CZ series standard chemical pumps includes all the performances of IH series standard chemical pumps, and its efficiency, cavitation performance and other indicators exceed IH type pumps.

CZ series standard chemical pump use

Transport low temperature or high temperature liquids; neutral or corrosive liquids; clean or liquids containing solid particles. Particularly suitable for: chemical and petrochemical industries; refineries; paper mills and pulp industry; grain industry.

CZ series standard chemical pump performance parameters

Flow rate (Q) 3.2-2000m3/h

Head (H) 7-160m

Working pressure (P) 2.5MPa

Working temperature (t) -80-300 degrees

CZ series standard chemical pump design features

      The pressure acting on the shaft seal is balanced by the balance holes on the blade or impeller. The shaft seal can be sealed with a soft seal (can be cooled or not), or a single or double-end unbalanced mechanical seal of various structures can be used. The ball bearings are durable and have ample shaft diameter for smooth operation. Part of the pump body is designed as a double-screw housing to balance radial forces. The bearing frame, including the shaft, the impeller, the stuffing box, etc., forms a combined component so that the pump body does not have to be removed from the pipeline during maintenance (if the extension coupling is used, the motor does not have to be removed). Flange design, using PN16, PN25 (depending on the difference in materials).

CZ series standard chemical pump conveying medium

      Inorganic and organic acids such as sulfuric acid, nitric acid, hydrochloric acid and phosphoric acid at various temperatures and concentrations. An alkaline solution such as sodium hydroxide and sodium carbonate at various temperatures and concentrations. Various salt solutions. Various liquid petrochemical products, organic compounds, and other corrosive materials and products. At present, our company's corrosion-resistant materials can meet the requirements of the above various media. When ordering, please provide the details of the medium to be delivered.
