Basic Info

Model No.: BODA-006

Impeller Number: Single-Stage Pump

Working Pressure: High Pressure Pump

Influent Type of Impeller: Single Suction Pump

Position of Pump Shaft: Horizontal Pump

Pump Casing Combined: Horizontal Split Pumps

Mounting Height: Since Irrigation Centrifugal Pumps

Impeller: Open

Usage: Pumps

Product Name: ZJ Series Slurry Pump For Mining Metallu

Additional Info

Packaging: wooden box

Productivity: 500

Brand: BODA

Transportation: Ocean,Land,Air

Place of Origin: china

Supply Ability: 500

Certificate: ISO9901

HS Code: 4101201190

Port: Tianjin,Qingdao,Shanghai

Product Description

we  are  Shijiazhuang Boda Industrial Pump Co.,Ltd  from  china .

we mainly operates pump & pump driven equipments, pump parts & resistance wearing castings, others hydraulic machinery, accessories etc. The products contain slurry pumps, API 610 petrol-oil & chemical pumps, waters pumps which have tens of series , more than one hundred varieties , thousands of models. They are widely used in mining, metallurgy, coal mining, electric power, petroleum, chemical , water supply and drainage industry and so on. Our company have senior engineers and classic technicians, have one slurry pump factory in shijiazhuang city , one API610 pump factory in Shenyang city, one chemical pumps factory in Dalian city .

if you have any needing on pump ,or have any needing on pump Components ,please feel free contact with us . we like to offer your our best price and best service for you .

Looking forward to cooperate with you .

Product Description

Introduction:

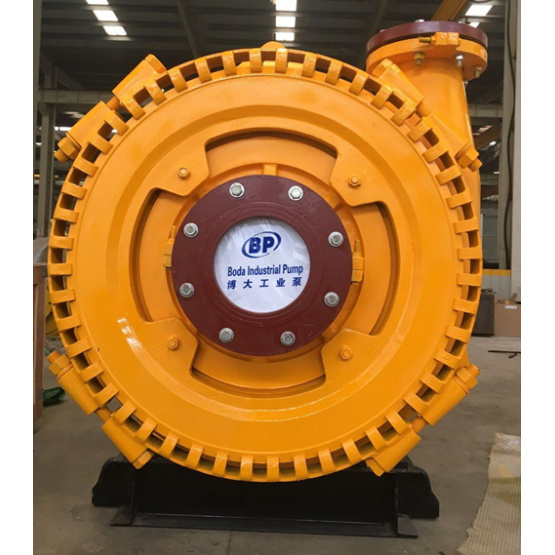

BG/BGH gravel pump

Long service life,high efficiency

Good quality with favourable price

High hardness,anti-wear alloy cast iron

Sand suction pump :

Constructin of this pump is of single casing connected by means of clamp bands and

wide wet passage. The wet parts are made of Ni hard and high chromium abrasion

resistance alloys. The discharge direction of pump can be oriented in any direction of

360 degree. This type of pump possesses the advantages of easy installation and

operation, good performance of NPSH and abrasion resistance.

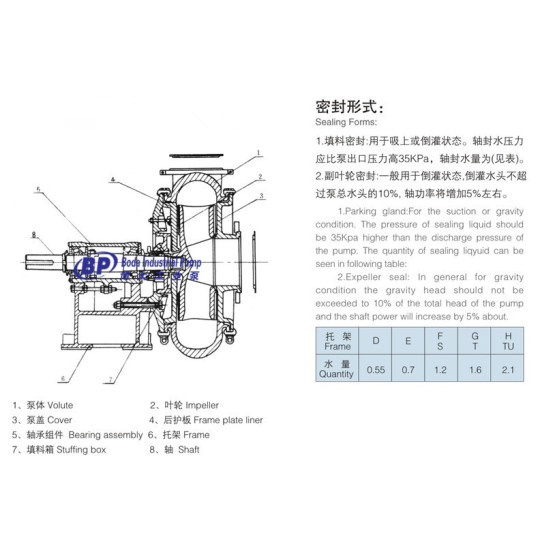

Sealing forms: packing gland, expeller seal, mechanical seal.

Driving type: V belt drive, hydraulic coupling drive, fluid coupling drive, frequency

conversion drive devices, thyrister speed regulation ect.

They are suitable for delivering slurries in mining, explosive sludge in metal melting,

grudging in dredger and course of river, and other fields. Type BGH pumps are of high

head ones.

Features:

1) Cantilevered, horizontal, centrifugal, one stage, single casing gravel (sand) pump

2) High head, large capacity, high efficiency.

3) Good NPSH performance.

4) Widely application: they are designed for handling more abrasive with solids slurries

in the river dredging, Sand reclamation, Sugar beet , explosive sludge in metal melting,

grudging in dredger and course of river and other fields.

5) Long bearing life: The bearing assembly is with large diameter shaft and short overhang.

6) Wear resistant wet parts: the wet parts are made of Ni hard and high chromium

abrasion resistance alloys. (more than 26% Chrome alloy).

7) Simple maintenance throat bush: the mating face of the throat bush is tapered,

so the wear is reduced and removal is simple.

8) Easy adjustment of impeller: An impeller adjustment mechanism is provided

below the bearing housing.

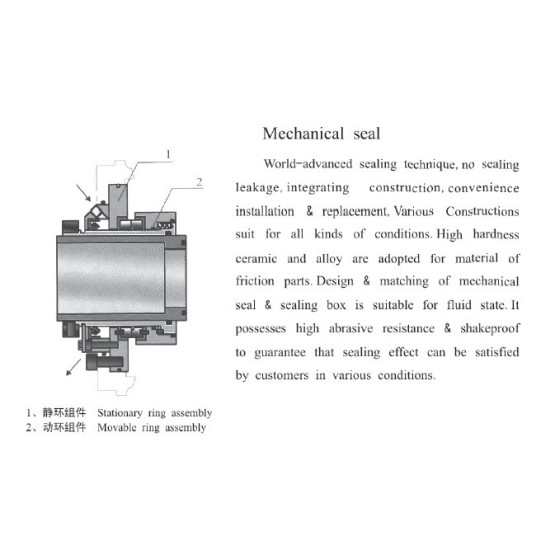

9) Centrifugal seal, mechanical seal and packing seal are available.

10) The pump can be directly matched with either motor or diesel engine

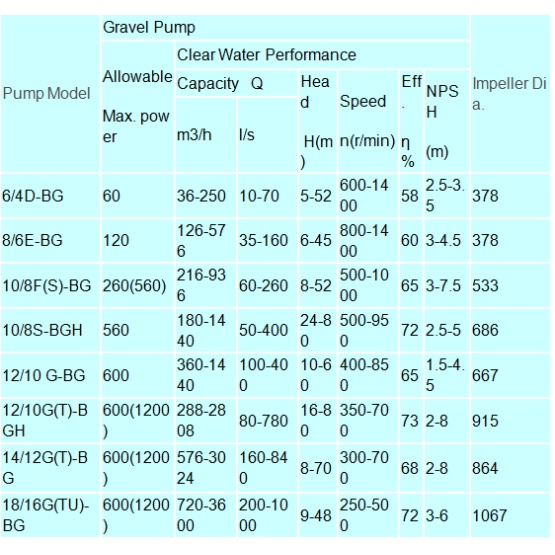

More specification:

It can be equipped with diesel engines or be equipped with motor driven directly. It has the advantages of working stability, little vibration, low noise and low hydraulic loss, high efficiency, low fuel consumption and small size, light weight, simple structure, easy maintenance.
